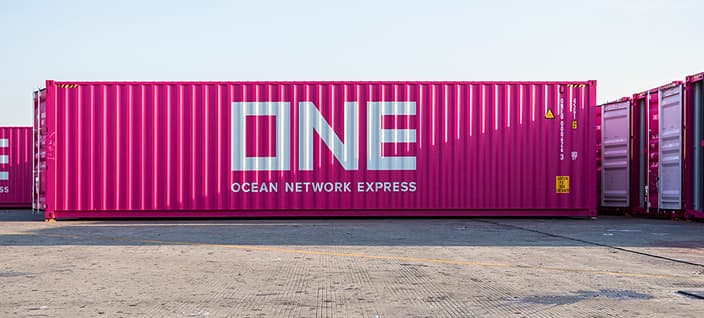

Dry Containers
Discover our versatile dry containers, designed for secure and efficient transport of general cargo worldwide. Find the perfect fit for your non-perishable goods with detailed specifications below.
Learn More about Dry Cargo ServicesDry 20 FT
Specifications for 8'6" / 30,480kg
Inside Measurement
Length
5,898 mm
19'4"
Width
2,350 mm
7'8"
Height
2,390 mm
7'10"
Door Opening
Width
2,340 mm
7'8"
Height
2,280 mm
7'6"
Capacity & Weight
Load Capacity
33.1 m³
1,169 cu ft
Tare Weight
2,150 kg
4,740 lbs
Pay Load
28,330 kg
62,460 lbs
Dry 40 FT
Specifications for 8'6" / 30,480kg
Inside Measurement
Length
12,032 mm
39'6"
Width
2,350 mm
7'8"
Height
2,390 mm
7'10"
Door Opening
Width
2,340 mm
7'8"
Height
2,280 mm
7'6"
Capacity & Weight
Load Capacity
67.6 m³
2,387 cu ft
Tare Weight
3,640 kg
8,027 lbs
Pay Load
26,840 kg
59,172 lbs
Dry 40 FT High Cube
Specifications for 9'6" / 30,480kg / 32,500kg
Inside Measurement
Length
12,032 mm
39'6"
Width
2,350 mm
7'8"
Height
2,695 mm
8'10"
Door Opening
Width
2,340 mm
7'8"
Height
2,585 mm
8'6"
Capacity & Weight
Load Capacity
76.2 m³
2,690 cu ft
Tare Weight
3,700 kg
8,157 lbs
Pay Load
28,800 kg
63,493 lbs
Dry 45 FT
Specifications for 9'6" / 30,480kg / 32,500kg
Inside Measurement
Length
13,556 mm
44'6"
Width
2,352 mm
7'9"
Height
2,697 mm
8'10"
Door Opening
Width
2,340 mm
7'8"
Height
2,585 mm
8'6"
Capacity & Weight
Load Capacity
86.0 m³
3,037 cu ft
Tare Weight
4,650 kg
10,252 lbs
Pay Load
27,850 kg
61,389 lbs
Please note this is for reference only. Individual containers may have different specifications from the measurement shown above. For further information, please contact your local ONE office.
Refrigerated Containers
Ensure your temperature-sensitive cargo arrives in perfect condition with our advanced refrigerated containers. Explore the precise control and features designed for fresh and frozen goods.
Learn More about Refrigerated Cargo ServicesWhy Choose ONE Refrigerated Containers?
Precise Control
Computerized temperature monitoring
Smart Ventilation
Fresh air exchange system
Air Circulation
Continuous airflow control
Multi-Power
Ship, terminal & generator ready
Food Safe
Meat, fish & dairy transport
Pharma Grade
Pharmaceutical compliance
Refrigerated 20 FT
Specifications for 8'6" / 30,480kg
Inside Measurement
Length
5,456 mm
17'11"
Width
2,288 mm
7'6"
Height
2,263 mm
7'5"
Outside Measurement
Length
6,058 mm
19'11"
Width
2,438 mm
8'0"
Height
2,591 mm
8'6"
Door Opening
Width
2,290 mm
7'6"
Height
2,221 mm
7'3"
Capacity & Weight
Load Capacity
28.2 m³
996 cu ft
Tare Weight
2,810 kg
6,195 lbs
Pay Load
27,670 kg
61,005 lbs
Refrigerated 40 FT High Cube
Specifications for 9'6" / 34,000kg
Inside Measurement
Length
11,590 mm
38'0"
Width
2,284 mm
7'6"
Height
2,544 mm
8'4"
Outside Measurement
Length
12,192 mm
40'0"
Width
2,438 mm
8'0"
Height
2,896 mm
9'6"
Door Opening
Width
2,290 mm
7'6"
Height
2,502 mm
8'2"
Capacity & Weight
Load Capacity
67.5 m³
2,383 cu ft
Tare Weight
4,490 kg
9,899 lbs
Pay Load
30,510 kg
67,263 lbs
Please note this is for reference only. Individual containers may have different specifications from the measurement shown above. For further information, please contact your local ONE office.

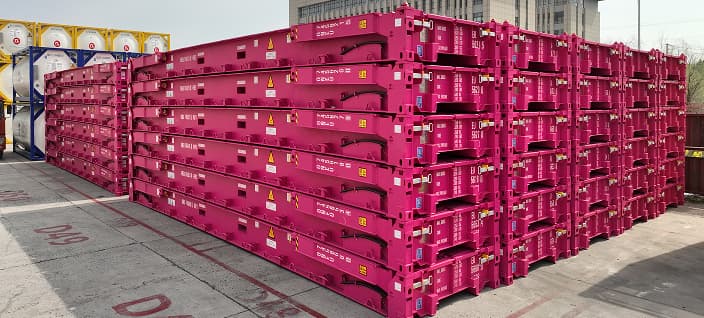

Flat Rack Containers
For oversized, heavy, or irregularly shaped cargo, our flat rack containers offer robust and flexible shipping solutions. Review the detailed dimensions engineered for special loads.
Learn More about Flat Rack ServicesFlat Rack 20 FT
Specifications for 8'6" / 38,100kg
Inside Measurement
Length (between corner posts)
5,568 mm
18'3"
Width (between side rails)
2,194 mm
7'2"
Height
2,213 mm
7'3"
Outside Measurement
Length
6,058 mm
19'11"
Width
2,438 mm
8'0"
Height
2,591 mm
8'6"
Capacity & Weight
Load Capacity
28.4 m³
1,003 cu ft
Tare Weight
3,100 kg
6,834 lbs
Pay Load
35,000 kg
77,162 lbs
Flat Rack 40 FT
Specifications for 8'6" / 45,000kg
Inside Measurement
Length (between corner posts)
11,652 mm
38'3"
Width (between side rails)
2,208 mm
7'3"
Height
1,955 mm
6'5"
Outside Measurement
Length
12,192 mm
40'0"
Width
2,438 mm
8'0"
Height
2,591mm
8'6"
Capacity & Weight
Load Capacity
53.2 m³
1,879 cu ft
Tare Weight
6,200 kg
13,669 lbs
Pay Load
38,800 kg
85,540 lbs
Flat Rack 40/HC
Specifications for 9'6" / 58,600kg
Inside Measurement
Length (between corner posts)
11,658 mm
38'3"
Width (between side rails)
2,374 mm
7'9"
Height
2,264 mm
7'5"
Outside Measurement
Length
12,192 mm
40'0"
Width
2,438 mm
8'0"
Height
2,896 mm
9'6"
Capacity & Weight
Load Capacity
64.3 m³
2,270 cu ft
Tare Weight
6,250 kg
13,779 lbs
Pay Load
52,500 kg
115,741 lbs
Please note this is for reference only. Individual containers may have different specifications from the measurement shown above. For further information, please contact your local ONE office.
Open Top Containers
Our open top containers are ideal for cargo that requires loading from the top, such as heavy machinery or oversized items. Find detailed specifications for flexible loading options.
Learn More about Open Top ServicesOpen Top 20 FT
Specifications for 8'6" / 30,480kg
Inside Measurement
Length
5,898 mm
19'4"
Width
2,350 mm
7'8"
Height
2,348 mm
7'8"
Door Opening
Width
2,340 mm
7'8"
Height
2,280 mm
7'6"
Roof Opening
Length
5,680 mm
18'8"
Width
2,252 mm
7'5"
Swing header opening
1,940 mm
6'4"
Capacity & Weight
Load Capacity
32.5 m³
1,148 cu ft
Tare Weight
2,240 kg
4,938 lbs
Pay Load
28,240 kg
62,260 lbs
Open Top 40 FT
Specifications for 8'6" / 30,480kg
Inside Measurement
Length
12,022 mm
39'5"
Width
2,350 mm
7'8"
Height
2,348 mm
7'8"
Door Opening
Width
2,340 mm
7'8"
Height
2,280 mm
7'6"
Roof Opening
Length
11,798 mm
38'8"
Width
2,230 mm
7'4"
Swing header opening
1,940 mm
6'4"
Capacity & Weight
Load Capacity
66.3 m³
2,341 cu ft
Tare Weight
3,880 kg
8,553 lbs
Pay Load
26,600 kg
58,642 lbs
Open Top 40/HC
Specifications for 9'6" / 32,500kg
Inside Measurement
Length
12,032 mm
39'6"
Width
2,352 mm
7'9"
Height
2,653 mm
8'8"
Door Opening
Width
2,340 mm
7'8"
Height
2,585 mm
8'6"
Roof Opening
Length
11,806 mm
38'9"
Width
2,192 mm
7'2"
Swing header opening
1,940 mm
6'4"
Capacity & Weight
Load Capacity
75.1 m³
2,651 cu ft
Tare Weight
3,890 kg
8,576 lbs
Pay Load
28,610 kg
63,075 lbs
Please note this is for reference only. Individual containers may have different specifications from the measurement shown above. For further information, please contact your local ONE office.
